Model 1230 Wheel Impact Tester
Overview

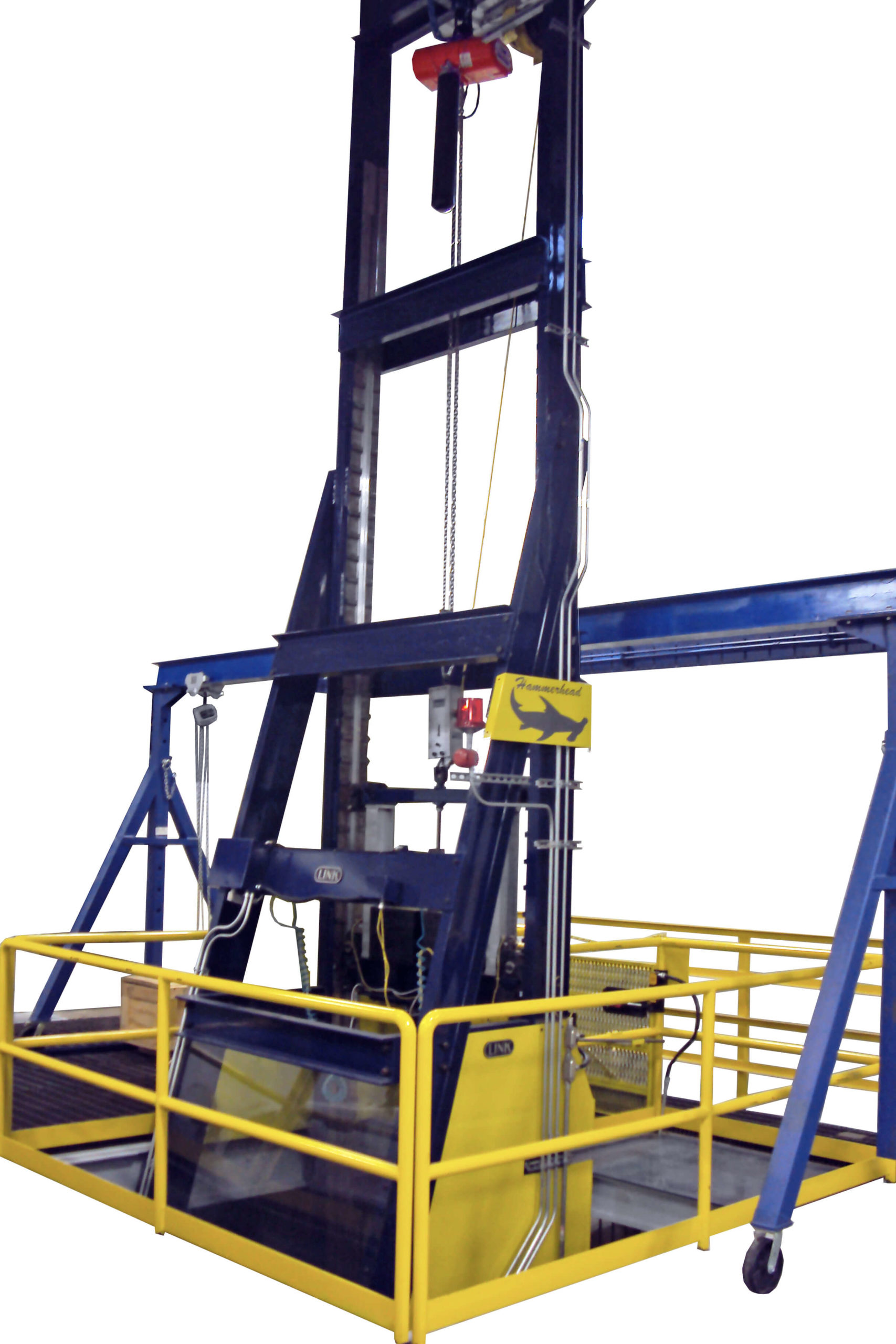

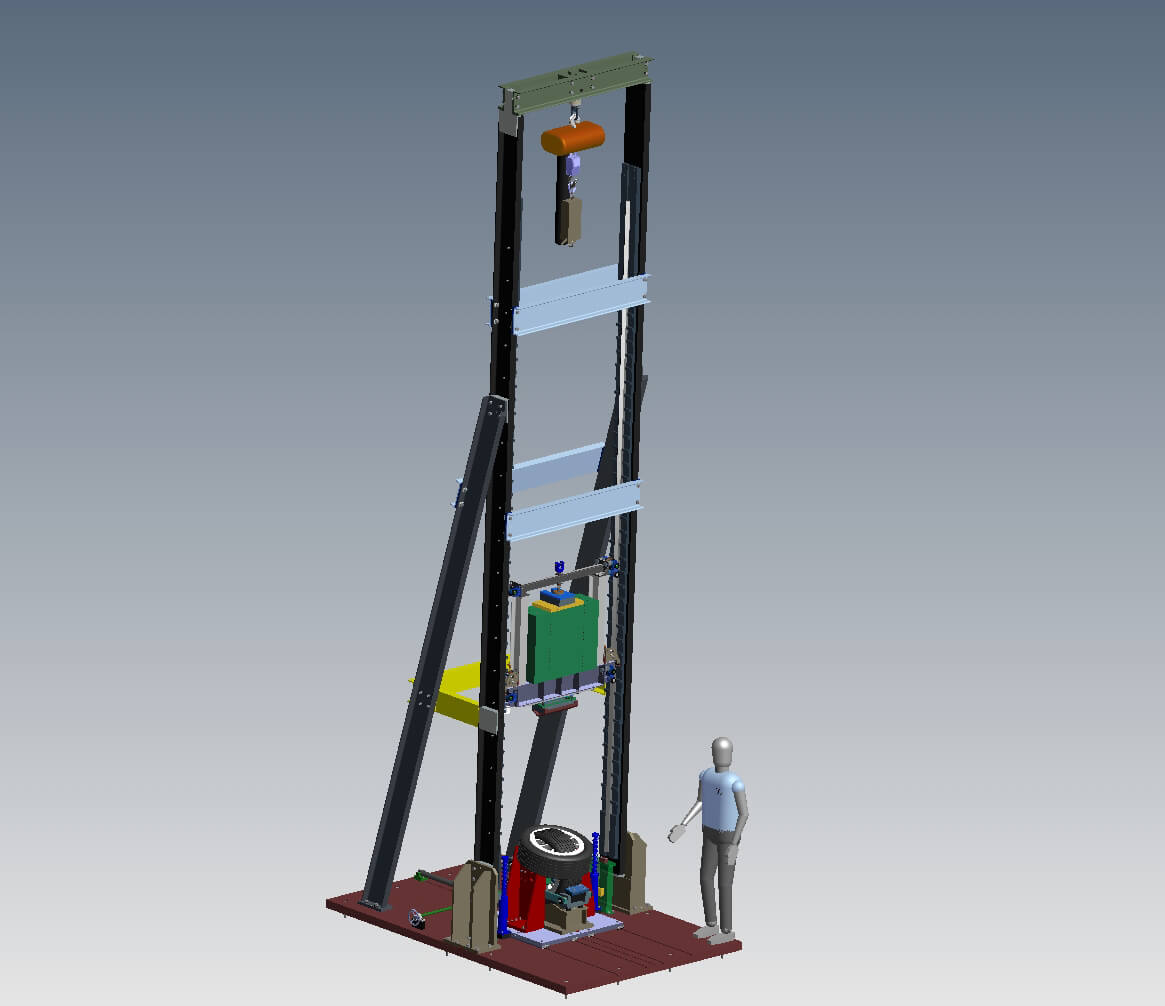

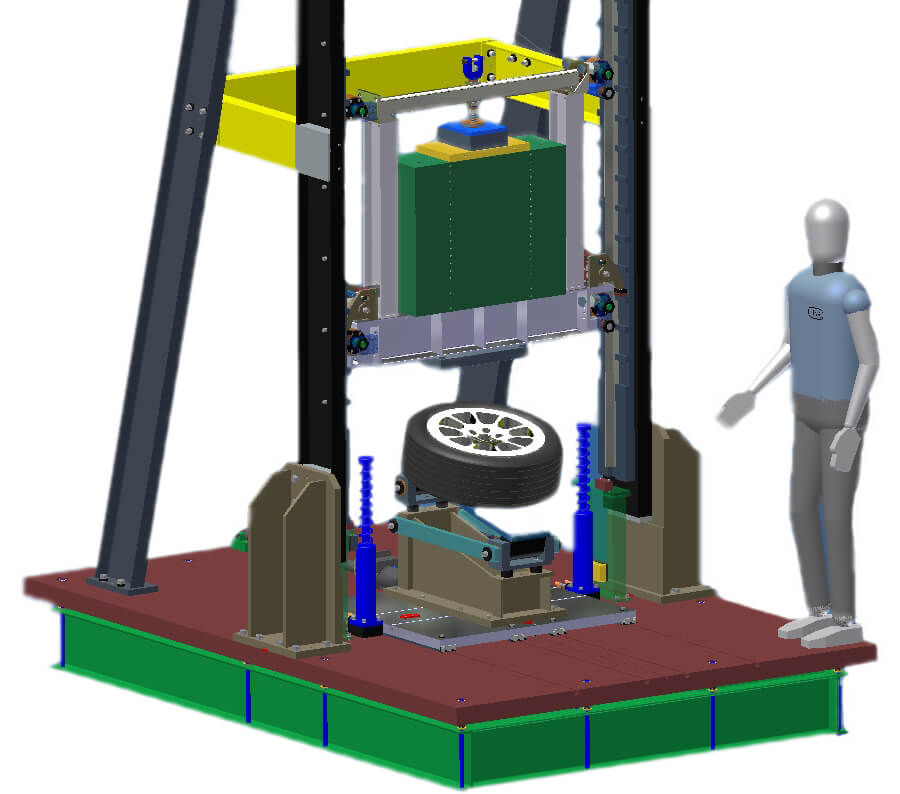

The Model 1230 Wheel Impact Test System measures the results of impact by a dropped weight on wheels and other components. The tester is mounted in a pit below floor level with a two-post frame and guide assembly extending above the floor. Fixtures and detachable striker heads are available to perform vertical or angular impact on a variety of wheels. A motorized winch is used to raise the drop box and incremental weights from up to 4.5 m above the test item. A remote-controlled latch releases the drop box. Sensors measure position and velocity.
Test Procedures
- SAE J175
- OEM test standards
Specifications:
- Control System
- ProLINK
- Drop Box
- 115 to 450 kg
- Drop Height
- 0 to 4.5 m
- Velocity
- 0.025 to 10 m/s
- Position
- 0 to 5000 mm
- Impact Load Cell
- 9000 kg compression
